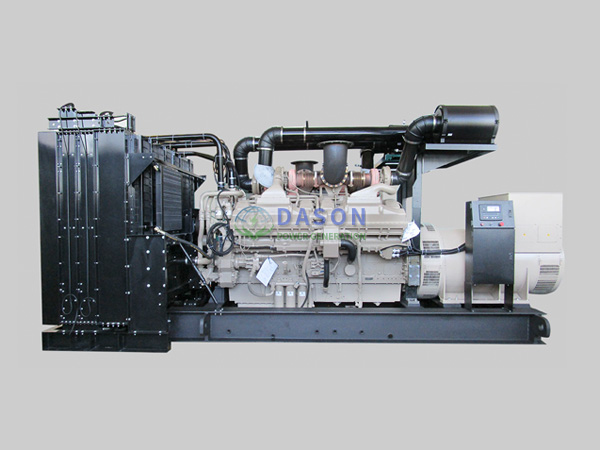

Powered by Joint Venture Cummins

Product Details

Engine features:

Engine cylinder block made from high-strength alloy cast has better rigidity, reduced vibration and noise;Four-valve per cylinder optimizes the air/fuel mixture;Some engines adopt Cummins-patented PT fuel system with unique overspeed protection;Some models are equipped with electronic control device, increasing the power and emission targets of engines and providing guidance on engine maintenance.

50HZ （DCEC）
Genset Model	Standby Power	Prime Power	Engine Model	Alternator Model	Fuel Consumption	Genset Weight Kg		Genset overall LxWxH (mm)		click for datail data
Genset Model	kW/kVa	kW/kVa	Cummins	Stamford	L/H	Open type	Silent type	Open Type	Silent type	click for datail data
DSC27	22/27	20/25	4B3.9-G2	PI144E	6.3	777	1380	1580×650×1146	2350×1133×1516
DSC30	24/30	22/27.5	4B3.9-G1	PI144F	6.5	777	1380	1580×650×1146	2350×1133×1516
DSC30	24/30	22/27.5	4B3.9-G2	PI144F	6.5	777	1380	1580×650×1146	2350×1133×1516
DSC33	26.4/33	24/30	4BT3.9-G1	PI144G	6.7	830	1420	1800×730×1290	2350×1133×1516
DSC33	26.4/33	24/30	4BT3.9-G2	PI144G	6.7	830	1420	1800×730×1290	2350×1133×1516
DSC40	31/39	28/35	4BT3.9-G1	PI144H	8.3	830	1420	1800×730×1290	2350×1133×1516
DSC40	31/39	28/35	4BT3.9-G2	PI144H	8.3	830	1420	1800×730×1290	2350×1133×1516
DSC45	35/44	32/40	4BT3.9-G1	PI144J	9.4	830	1420	1800×730×1290	2350×1133×1516
DSC45	35/44	32/40	4BT3.9-G2	PI144J	9.4	830	1420	1800×730×1290	2350×1133×1516
DSC55	44/55	40/50	4BTA3.9-G2	UCI224D	11.7	926	1530	1900×783×1257	2350×1133×1516
DSC65	53/66	48/60	4BTA3.9-G2	UCI224E	13.8	975	1540	1900×783×1257	2350×1133×1516
DSC80	64/80	58/72	4BTA3.9-G11	UCI224F	16.2	975	1540	1900×783×1257	2350×1133×1516
DSC95	74/93	68/85	6BT5.9-G1	UCI224G	19.5	1249	2037	2200×830×1278	3200×1133×1766
DSC95	74/93	68/85	6BT5.9-G2	UCI224G	19.5	1249	2037	2200×830×1278	3200×1133×1766
DSC110	88/110	80/100	6BT5.9-G1	UCI274C	22.9	1272	2059	2200×830×1278	3200×1133×1766
DSC110	88/110	80/100	6BT5.9-G2	UCI274C	22.9	1272	2059	2200×830×1278	3200×1133×1766
DSC125	100/125	91/114	6BTA5.9-G2	UCI274D	25.5	1297	2130	2200×830×1325	3200×1133×1766
DSC138	110/138	100/125	6BTAA5.9-G2	UCI274ES	29.5	1381	2168	2360×830×1334	3200×1133×1766
DSC150	120/150	110/138	6BTAA5.9-G2	UCI274E	29.5	1381	2168	2360×830×1334	3200×1133×1766
DSC165	132/165	120/150	6BTAA5.9-G12	UCI274F	34.8	1420	2430	2360×830×1334	3200×1133×1766
DSC175	140/175	128/160	6CTA8.3-G1	UCI274F	35.7	1782	3040	2360×847×1366	3600×1333×2040
DSC175	140/175	128/160	6CTA8.3-G2	UCI274F	35.7	1782	3040	2360×847×1366	3600×1333×2040
DSC200	160/200	145/182	6CTA8.3-G1	UCI274G	41.2	1832	3100	2360×847×1366	3600×1333×2040
DSC200	160/200	145/182	6CTA8.3-G2	UCI274G	41.2	1832	3100	2360×847×1366	3600×1333×2040
DSC220	176/220	160/200	6CTAA8.3-G2	UCI274H	43.3	1850	3040	2400×980×1460	3600×1333×2040
DSC250	200/250	180/225	6LTAA8.9-G2	UCDI274J	47.8	1960	3380	2540×1018×1527	3600×1333×2040
DSC275	220/275	200/250	6LTAA8.9-G2	UCDI274K	53	1985	3400	2540×1018×1527	3600×1333×2040
DSC288	230/288	210/263	6LTAA8.9-G3	HCI444D	54	2204	3619	2540×1018×1527	3600×1333×2040
DSC415	330/413	300/375	6ZTAA13-G3	HCI444F	73.5	3600	6400	3250×1360×2100	5000×1983×2371
DSC460	368/460	350/438	6ZTAA13-G2	HCI544C	87	3700	6450	3250×1360×2100	5000×1983×2371
DSC460	368/460	360/450	6ZTAA13-G4	HCI544C	89.5	3700	6450	3250×1360×2100	5000×1983×2371
DSC500	400/500	360/450	QSZ13-G2	HCI544C	98	3700	6450	3250×1360×2100	5000×1983×2371
DSC550	440/550	400/500	QSZ13-G3	HCI544D	101	3700	6450	3250×1360×2100	5000×1983×2371

50HZ (CCEC)
Genset Model	Standby Power	Prime Power	Engine Model	Alternator Model	Fuel Consumption	Genset Weight Kg		Genset overall LxWxH (mm)		click for datail data
Genset Model	kW/kVa	kW/kVa	Cummins	Stamford	L/H	Open type	Silent type	Open Type	Silent type	click for datail data
DSC250	200/250	180/225	NT855-GA	UCDI274J	47.5	2460	4200	3000×1054×1758	4300×1483×2145
DSC275	220/275	200/250	NT855-GA	UCDI274K	52.3	2490	4250	3000×1054×1758	4300×1483×2145
DSC275	220/275	200/250	MTA11-G2	UCDI274K	53.2	2370	4123	2750×1050×1585	4300×1483×2145
DSC315	260/315	240/300	NTA855-G1A	HCI444D	61	2810	4450	3000×1054×1758	4300×1483×2145
DSC350	280/350	256/320	NTA855-G1B	HCI444ES	68.3	2920	4495	3000×1054×1758	4300×1483×2145
DSC350	280/350	256/320	MTAA11-G3	HCI444ES	63	2300	4887	3000×1140×1600	4500×1583×2100
DSC385	308/385	280/350	NTA855-G2A	HCI444E	72	3120	4495	3000×1054×1758	4300×1483×2145
DSC390	312/390	283/354	NTA855-G4	HCI444E	75	3280	4495	3000×1054×1758	4300×1483×2145
DSC415	330/413	300/375	NTAA855-G7	HCI444FS	83.5	2864	5327	3250×1120×1721	4500×1583×2100
DSC438	350/438	320/400	QSNT-G3	HCI444F	85	2875	5350	3250×1120×1721	4500×1583×2100
DSC450	360/450	320/400	NTAA855-G7A	HCI444F	87	2880	5360	3250×1120×1721	4500×1583×2100
DSC500	400/500	360/450	KTA19-G3	HCI544C	95.1	3800	6500	3350×1280×1934	4800×1683×2200
DSC550	440/550	400/500	KTA19-G3A	HCI544D	94.6	3940	6630	3350×1280×1934	4800×1683×2200
DSC550	440/550	400/500	KTA19-G4	HCI544D	97	3940	6630	3350×1280×1934	4800×1683×2200
DSC600	480/600	440/550	KTAA19-G5	HCI544E	113	4020	6650	3525×1550×2032	5000×1983×2371
DSC660	528/660	480/600	KTA19-G8	HCI544E	126	4150	6800	3350×1280×1934	4800×1683×2200
DSC688	550/688	500/625	KTAA19-G6A	HCI544FS	128	4220	6700	3525×1550×2032	5000×1983×2371
DSC700	560/700	504/630	KT38-G	HCI544F	140	4220	6700	3525×1550×2032	5000×1983×2371
DSC715	572/715	520/650	QSKTAA19-G4 NR2	HCI544F	145	6600	9000	3525×1550×2032	5000×1983×2371
DSC800	640/800	582/728	KT38-GA/G1	LVI634B	225	6785	11985	4200×1805×2383	6058×2438×2896
DSC825	660/825	600/750	KTA38-G2	LVI634B	167	7000	12200	4200×1805×2383	6058×2438×2896
DSC880	704/880	640/800	KTA38-G2B	HCI634G	169	7140	12350	4200×1805×2383	6058×2438×2896
DSC1000	800/1000	728/910	KTA38-G2A	HCI634H	196	7140	12450	4200×1805×2383	6058×2438×2896
DSC1100	880/1100	800/1000	KTA38-G5	HCI634J	209	7310	12510	4200×1805×2244	6058×2438×2896
DSC1250	1000/1250	900/1125	KTA38-G9	HCI634K	210	8100	13417	4350×2090×2178	6058×2438×2896
DSC1375	1100/1375	1000/1250	QSK38-G5	PI734A	274	7800	15800	5140×1850×2340	12192×2438×2896
DSC1375	1100/1375	1000/1250	KTA50-G3	PI734A	254	9038	16850	5000×1850×2343	12192×2438×2896
DSC1540	1232/1540	1120/1400	KTA50-G8	PI734C	289	9522	18322	5200×2260×2510	12192×2438×2896
DSC1650	1320/1650	1200/1500	KTA50-GS8	PI734C	309	9900	18500	5200×2260×2510	12192×2438×2896

★Remarks:
1. Above Dasonpower Gensets are based on 50HZ,1500 RPM, 400/230V, PF0.8 3phase 4wires other special voltage can be satisfied.
2. Requirements for Soundproof Canopy, ATS, Synchronizing Parallel Control panels etc are optional.
3. We observe the rights of data’s adjustment without prior notification.

60HZ (DCEC)
Genset Model	Standby Power	Prime Power	Engine Model	Alternator Model	Fuel Consumption L/H (full load100%)	Genset Weight Kg		Genset overall LXWXH (mm)		click for datail data
Genset Model	kW/kVa	kW/kVa	Engine Model	Alternator Model	Fuel Consumption L/H (full load100%)	Open type	Silent type	Open Type	Silent type	click for datail data
DSC25-6	19/24	17.5/21.9	4B3.9-G1	PI044H	6.3	750	1390	1580×650×1146	2350×1133×1516
DSC25-6	19/24	17.5/21.9	4B3.9-G2	PI044H	6.3	750	1390	1580×650×1146	2350×1133×1516
DSC33-6	26.5/33	24/30	4B3.9-G1	PI144E	8.6	777	1390	1580×650×1146	2350×1133×1516
DSC33-6	26.5/33	24/30	4B3.9-G2	PI144E	8.6	777	1390	1580×650×1146	2350×1133×1516
DSC40-6	33/41	30/37.5	4BT3.9-G1	PI144G	9.5	802	1420	1800×730×1290	2350×1133×1516
DSC40-6	33/41	30/37.5	4BT3.9-G2	PI144G	9.5	802	1420	1800×730×1290	2350×1133×1516
DSC45-6	36/45	34/42	4BT3.9-G2	PI144H	10.7	802	1420	1800×730×1290	2350×1133×1516
DSC60-6	48/60	44/55	4BTA3.9-G2	UCI224C	13.8	926	1540	1900×783×1257	2350×1133×1516
DSC70-6	56/70	50/62	4BTA3.9-G2	UCI224D	15.9	926	1540	1900×783×1257	2350×1133×1516
DSC85-6	66/83	60/75	4BTA3.9-G2	UCI224E	17.8	926	1540	1900×783×1257	2350×1133×1516
DSC100-6	80/100	72/90	4BTA3.9-G11	UCI224F	20.5	926	1540	1900×783×1257	2350×1133×1516
DSC110-6	88/110	80/100	6BT5.9-G2	UCI224G	25.6	1220	2059	2200×830×1278	3200×1133×1766
DSC125-6	100/125	91/114	6BT5.9-G1	UCI274C	29	1272	2059	2200×830×1278	3200×1133×1766
DSC125-6	100/125	91/114	6BT5.9-G2	UCI274C	29	1272	2059	2200×830×1278	3200×1133×1766
DSC145-6	116/145	105/131	6BTA5.9-G2	UCI274D	31	1290	2090	2200×830×1325	3200×1133×1766
DSC165-6	132/165	120/150	6BTAA5.9-G2	UCI274E	34.3	1370	2178	2360×830×1334	3200×1133×1766
DSC180-6	143/180	130/163	6BTAA5.9-G12	UCI274E	37.8	1420	2430	2360×830×1334	3200×1133×1766
DSC195-6	157/195	143/178	6CTA8.3-G1	UCI274E	41.4	1755	3050	2360×847×1366	3600×1333×2040
DSC195-6	157/195	143/178	6CTA8.3-G2	UCI274E	41.4	1755	3050	2360×847×1366	3600×1333×2040
DSC220-6	176/220	160/200	6CTA8.3-G1	UCI274F	44.7	1755	3050	2360×847×1366	3600×1333×2040
DSC220-6	176/220	160/200	6CTA8.3-G2	UCI274F	44.7	1755	3050	2360×847×1366	3600×1333×2040
DSC240-6	192/240	175/220	6CTAA8.3-G2	UCI274G	49	1800	3204	2400×980×1460	3600×1333×2040
DSC275-6	220/275	200/250	6LTAA8.9-G2	UCI274H	54.4	1940	3050	2540×1018×1527	3600×1333×2040
DSC300-6	240/300	218/273	6LTAA8.9-G2	UCDI274J	60	1940	3390	2540×1018×1527	3600×1333×2040
DSC325-6	260/325	236/295	6LTAA8.9-G3	UCDI274J	62	1940	3400	2540×1018×1527	3600×1333×2040
DSC415-6	330/413	300/375	6ZTAA13-G3	HCI444D	77.8	3600	6400	3250×1360×2100	5000×1983×2371
DSC460-6	368/460	360/450	6ZTAA13-G2	HCI444FS	81	3600	6400	3250×1360×2100	5000×1983×2371
DSC460-6	368/460	360/450	6ZTAA13-G4	HCI444FS	81	3600	6400	3250×1360×2100	5000×1983×2371

60HZ (CCEC)
Genset Model	Standby Power	Prime Power	Engine Model	Alternator Model	Fuel Consumption L/H (full load100%)	Genset Weight Kg		Genset overall LXWXH (mm)		click for detail data
Genset Model	kW/kVa	kW/kVa	Engine Model	Alternator Model	Fuel Consumption L/H (full load100%)	Open type	Silent type	Open Type	Silent type	click for detail data
DSC275-6	220/275	200/250	NT855-GA	UCI274H	60.4	2485	4120	3000×1054×1758	4300×1483×2145
DSC350-6	280/350	256/320	NTA855-G1	HCI444D	70.1	2840	4470	3000×1054×1758	4300×1483×2145
DSC375-6	300/375	275/344	NTA855-G1B	HCI444D	70.5	2869	4470	3000×1054×1758	4300×1483×2145
DSC440-6	352/440	320/400	NTA855-G3	HCI444E	85.1	2940	4515	3000×1054×1758	4300×1483×2145
DSC500-6	400/500	360/450	KTA19-G2	HCI444FS	95.8	3627	6440	3350×1280×1934	4800×1683×2200
DSC550-6	440/550	400/500	KTA19-G3	HCI444F	101	3830	6490	3350×1280×1934	4800×1683×2200
DSC565-6	450/565	410/513	KTA19-G3	HCI544C	103.5	3850	6520	3350×1280×1934	4800×1683×2200
DSC625-6	500/625	450/565	KTA19-G3A	HCI544C	117	3870	6600	3350×1280×1934	4800×1683×2200
DSC625-6	500/625	450/565	KTA19-G4	HCI544C	117	3870	6600	3350×1280×1934	4800×1683×2200
DSC688-6	550/688	470/588	KTAA19-G5	HCI544D	134	3950	6720	3525×1550×2032	5000×1983×2371
DSC750-6	600/750	546/682	KTAA19-G6A	HCI544E	142	4100	6800	3525×1550×2032	5000×1983×2371
DSC750-6	600/750	546/682	QSK19-G5	HCI544E	151	4100	6800	3525×1550×2032	5000×1983×2371
DSC850-6	680/850	620/775	KT38-G	HCI544F	154	6500	11667	4200×1805×2383	6058×2438×2896
DSC963-6	770/963	700/875	KTA38-G1	HCI634G	186	6750	11889	4200×1805×2383	6058×2438×2896
DSC1000-6	800/1000	725/906	KTA38-G2	HCI634G	204	6950	11947	4200×1805×2383	6058×2438×2896
DSC1100-6	880/1100	800/1000	KTA38-G2A	HCI634G	210	7150	12834	4200×1805×2383	6058×2438×2896
DSC1250-6	1000/1250	900/1125	KTA38-G4	HCI634H	229.5	7280	13170	4200×1805×2244	6058×2438×2896
DSC1375-6	/	1100/1375	KTA38-G9	HCI634J	210	8100	13417	4350×2090×2178	6058×2438×2896
DSC1540-6	1232/1540	1120/1400	KTA50-G3	HCI634K	281.5	9150	17020	5000×1850×2343	12192×2438×2896
DSC1730-6	1384/1730	1260/1575	KTA50-G9	PI734B	327	9560	17550	5200×2260×2510	12192×2438×2896
DSC1875-6	1500/1875	1260/1575	KTA50-G9	PI734C	327	9590	18200	5200×2260×2510	12192×2438×2896

★Remarks:

1. Above Dasonpower Gensets are based on 60HZ,1800 RPM, 480/277V, PF0.8 3phase 4wires other special voltage can be satisfied.
2. Requirements for Soundproof Canopy, ATS, Synchronizing Parallel Control panels etc are optional.
3. We observe the rights of data’s adjustment without prior notification.
