FPT

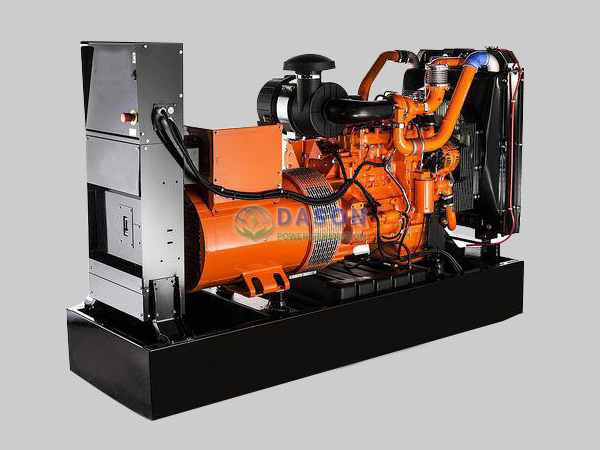

Dason power DSFP series diesel generator set equipped with world-renowned engine brand-FPT, The advantages are:
● Excellent transient load response.
● High performance guaranteed in all conditions.
● High engine power density.
● Compliance with the most stringent emissions legislations Tier 4B ,thanks to HI-eSCR without DPF,and stage IIIA.
● Alternative fuels compatibility.
● Low noise levels.
● Low oil and fuel consuption.
● Best in class maintenance intervals.
● Low running costs in continuous operating power.
● Availability of a wide range of options to create taitor-made products.
● Compact engine layout.
● Availability of cold starting accessories.
50HZ | ||||||
Genset Model | Standby Power | Prime Power | Diesel Model | Engine Model | CyL | DSPL |
KW/KVA | KW/KVA | FPT | Stamford | L | ||
DSFP33 | 26/33 | 24/30 | S8000AM1.S500 | PI144G | 3L | 2.9 |
DSFP55 | 44/55 | 40/50 | NEF45AM2.S500 | UCI224D | 4L | 4.5 |
DSFP88 | 70/88 | 64/80 | NEF45SM3.S500 | UCI224G | 4L | 4.5 |
DSFP132 | 106/132 | 96/120 | NEF45TM3.S500 | UCI274D | 4L | 4.5 |
DSFP138 | 110/138 | 100/125 | NEF67SM1.S500 | UCI274E | 6L | 6.7 |
DSFP187 | 150/187 | 136/170 | NEF67TM4.S500 | UCI274G | 6L | 6.7 |
DSFP220 | 176/220 | 160/200 | NEF67TM7.S500 | UCI274H | 6L | 6.7 |
DSFP275 | 220/275 | 200/250 | CURSOR87TE3.S550 | UCDI274K | 6L | 8.7 |
DSFP330 | 264/330 | 240/300 | CURSOR87TE4.S550 | HCI444D | 6L | 8.7 |
DSFP495 | 400/495 | 360/450 | CR13TE6W. S550 | HCI544C | 6L | 12.9 |
DSFP550 | 440/550 | 400/500 | CR13TE7W. S550 | HCI544D | 6L | 12.9 |
DSFP660 | 528/660 | 480/600 | CR16TE1W.S550 | HCI544E | 6L | 15.9 |
★Remarks:
1. Above Dasonpower Gensets are based on 50HZ,1500 RPM, 400/230V, PF0.8 3phase 4wires other special voltage can be satisfied.
2. Requirements for Soundproof Canopy, ATS, Synchronizing Parallel Control panels etc are optional.
3. We observe the rights of data’s adjustment without prior notification.
